Details:

  Display: 4 Digit, 10 mm LCD

  Operating Principle: Ultrasonic

  Measuring Range (metric / Imperial): 1.0~200 mm / 0.04~8 inch

  Battery Indication:  Low Battery Indication

  Sound Velocity: 1000~9000 m/s

  Lower Limit Steel Pipes: Diameter15 x 2.0 mm Diameter20 x 3.0 mm     determined by transducer

  Calibration Block:  Included

  Resolution:  0.1 mm

  Accuracy: ± (0.5%n + 0.1)

Operating Conditions:  Temperature: 0~40 °C, Humidity: < 85 %RH

Power Supply: 4 x 1.5 V AAA (UM-4) Battery

Dimensions: 135 x 65 x 27 mm

Weight: 120 g (Not Including Batteries)

Standard Accessories:

1. Main Unit

2. Calibration Block

3. Coupling Agent

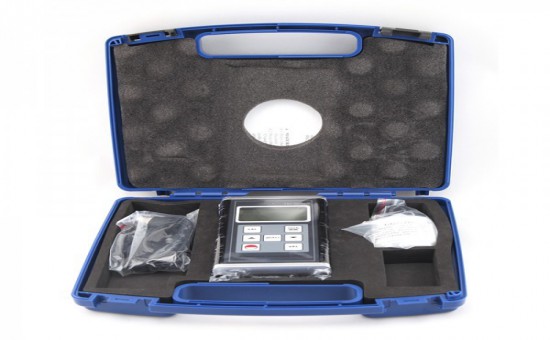

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. USB, RS-232C data cable with software

2. Bluetooth data output with software

Details:

  Case Material:  Aluminum Alloy

  Display: 4 Digit LCD

  Operating Principle:   Ultrasonic

  Measuring Range (metric / Imperial): 0.9~400 mm (45 # steel)

  Battery Indication:  Low Battery Indication

  Sound Velocity:  1000~9000 m/s

  Lower Limit Steel Pipes: Diameter 20 x 3.0 mm

  Calibration Block:  Included

  Resolution: 0.01 mm / 0.1 mm

  Accuracy: ± (0.5%n + 0.1)

  Automatic memory material code and the value of sound velocity

  Power off:  Auto Power off & Manual Power Off

  Operating  Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH

  Power Supply: 2 x 1.5 V AA (UM-3) Battery

  Dimensions: 130 x 76 x 31 mm

  Weight: 340 g (Not Including Batteries)

Standard Accessories:

 1. Main Unit

 2. 5MDiameter 8 Standard Sensor

 3. Coupling Agent

 4. Carrying Case

 5. Operating Manual

Optional Accessories:

 1. 6M Diameter 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm;Operating temperature: -10~60°C

 2. 5M Diameter 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature)

                                                                        Measuring range (steel) : 4.0~100.0 mm (high temperature)

                                                                        Operating temperature: -10~300°C

 3. Curved Surface Probe

 4. USB, RS-232C data cable with software

 5. Bluetooth data output with software
