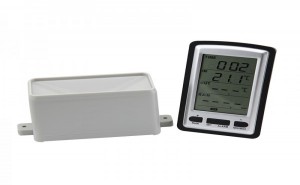

Function:

1.detail display of rainfall data in 1 hour,24 hour, week and total since last reset(user selectable in inch or mm)

2.radio controlled clock with manual SETTING OPTION.

3.Calendar(day-month –year display)

4.Indoor temperature (C or F)

5.Time zone setting

6.12 or  24 hour time mode

7.Free standing

Specifications:

Indoor temperature range:-40°C to +60°C

Resolution: 0.1°C

Power consumption

Base station:2*AA 1.5v

Remote sensor:2*AAA 1.5v

Battery life:Minimum 12 months for both sensor and receiver

Package contents

1*weather station base unit

1*rain sensor

Mounting screw

Instruction manual

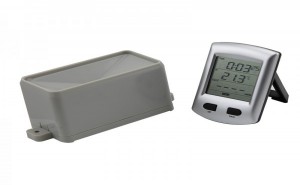

Function：

1. detail display of rainfall data in 1 hour,24 hour, week ,month and total since last reset（user select able in inch or mm）

2. radio controlled clock with manual SETTING OPTION.

3. Calendar （day-month –year display）

4. Indoor& outdoor temperature （°C or °F）

5. Time zone setting

6. 12 or  24 hour time mode

7.Wall hanging and free standing

Specifications:

Outdoor data:

Transmission distance in open field:Max.100m

Frequency:433.9MH±250kHz

Temperature range:-40°C to 65°C (show OFL if outside range)

Resolution:0.1°C

Measuring interval remote sensor:48 sec

Water proof level:IPX3

Current:15mA(HF transmitting),10uA(Standby)

Indoor data:

Pressure/temperature: 48sec

Indoor temperature range:-9.9°C to +18°C

Resolution: 0.1°C

Alarm duration:120sec

Power consumption

Base station:2*AA 1.5v

Remote sensor:2*AAA 1.5v

Battery life:Minimum 12 months for both sensor and receiver

Package contents

1*weather station base unit

1*rain sensor

Mounting screw

Instruction manual

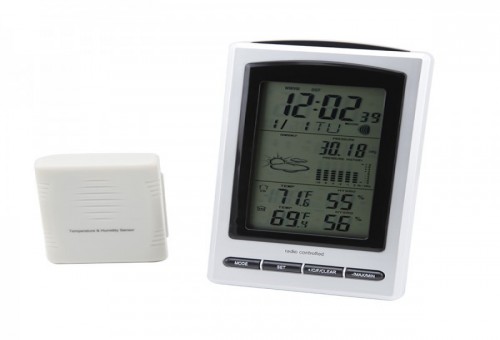

Features :

1. MCU power pressure 3V

2. MCU frequency:32.768Khz and 3.58Mhz (fast frequency)

3. LCD driver:1/3 Bias,1/8Duty ,driver pressure 4.5V

4.5 keys operation

5. perpetual calendar,clock alarm,snooze

6. clock （clock format:12/24H）

7. wireless temperature and humidity outdoor receiving, switch channel automatically and manually.

8. Indoor temperature range 0 C~70 C, accuracy:±1°C,display0 C and 70 C when out of low/high temperature range . sensor error display-.-°C.

9. Indoor humidity range 20%~95%, accuracy ±5 °C, display 20%and 95% when out of low/high temperature range . sensor error display-.-°C.

10. Outdoor temperature range 0 C~70 C, accuracy ±1 °C,display-40C and 70 C when out of low/high temperature range . sensor error display-.-°C.

11. Outdoor humidity range 20%~95%, accurac y± 5 °C, display 20%and 95% when out of low/high temperature range . sensor error display-.-°C.

12. High/low and in/out door temperature and humidity alarm.

13. wireless RF transmission with three channel,you can choose first,second or third channel,distance transmission about 100 meters  in open outdoor.

14. maximum/minimum record of in/out temperature and humidity,clear Max/min record by manual.

15. RCC-radio clock controlled.(WWVB;DCF;MSF;NO;RCC;),default value depends on nation and regions.

16. moon phase.

17. barometric pressure range:300hpa-1100pha ,accuracy ±5pha

18. high/low barometer pressure alarm

19. weather forecast tendency indicator

20. Low voltage indication with icon flash

21. Valid keypad tone

22. Backlight,press(CHANNEL/LIGHT/SZ)illumines the LCD screen for 10 seconds

packing contents

1*weather station base unit

1*remote sensor with mounting bracket

Mounting screws

Instruction manual
