Specifications :

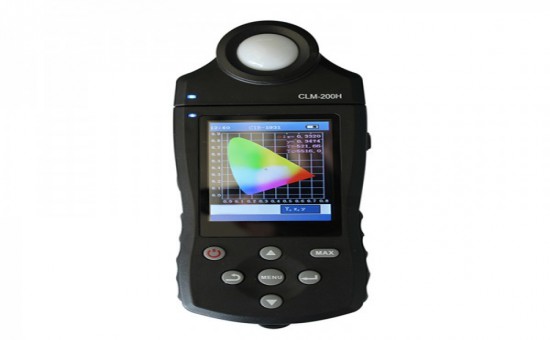

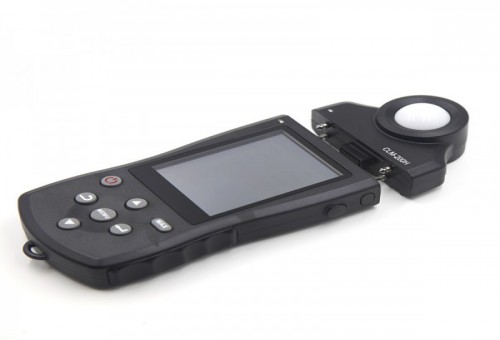

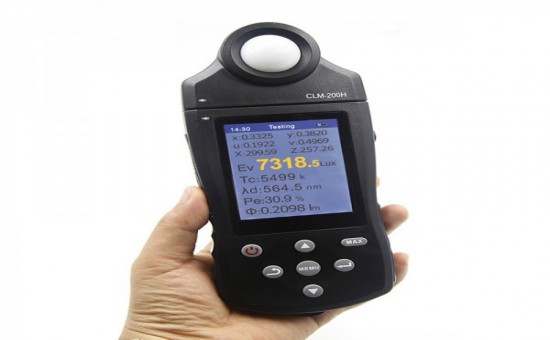

| Model | CLM-200H | CLM-200E |
| Relative Spectral Response | Closely matches CIE Standard Observer curves X , y , and Z Within 6%(f1) of the CIE spectral luminous efficiency V | Closely matches CIE Standard Observer curves X , y , and Z Within 6%(f1) of the CIE spectral luminous efficiency V |
| Cosine response(f2) | Ev: Within 3% | Ev: Within 3% |
| Receptor | Silicon photocell | Silicon photocell |
| Measuring function | Tristimulus values: X Y Z Chromaticity : Ev xy, Ev u Correlated color temperature: Tc Chromaticity coordinate: ICE1931(x,y),ICE1976(u,v) Dominant wavelength: d Colour purity: Pe Luminous flux: Φ RGB parameter, chromaticity diagram, maximum recording and indicator | Tristimulus values: X Y Z Chromaticity : Ev xy, Ev u Correlated color temperature: Tc Chromaticity coordinate: ICE1931(x,y),ICE1976(u,v) Dominant wavelength: d Colour purity: Pe maximum recording and indicator |
| Other function | User calibration function, Memory capacity: 8000 groups, Auto Power off | User calibration function, Memory capacity: 8000 groups, Auto Power off |
| Measuring range | 0.1-150,000lx, 0.01-15,000 fcd Chromaticity:5 lx, 0.5 fcd or above in four automatically selected ranges(lx or fcd is swichable) | 0.1-150,000lx, 0.01-15,000 fcd Chromaticity:5 lx, 0.5 fcd or above in four automatically selected ranges(lx or fcd is swichable) |
| Spectral wavelength range | 360～780nm | 360～780nm |
| Accuracy | Ev: ±2%±1digit of displayed value xy: ±0.003(500lx, standard illuminant A measured) | Ev: ±2%±1digit of displayed value xy: ±0.003(500lx, standard illuminant A measured) |
| Repeatability | Ev: ±0.5%+1 digit(2σ) xy: ±0.0005(500lx, standard illuminant A measured) | Ev: ±0.5%+1 digit(2σ) xy: ±0.0005(500lx, standard illuminant A measured) |
| Temperature drift | Ev: ±3%±1digit of displayed value, xy: +-0.003 | Ev: ±3%±1digit of displayed value, xy: +-0.003 |
| Response time | 0.5 sec.(continuous measurement) | 0.5 sec.(continuous measurement) |
| Computer interface | USB,SD | USB,SD |
| Display | 3.2" high-luminance LCD color display | 3.2" high-luminance LCD color display |
| Operating temperature/ Humidity range | -10 to 40° C, relative humidity 85% or less (at 35°C) with no condensation | -10 to 40° C, relative humidity 85% or less (at 35°C) with no condensation |
| Storage temperature/ Humidity range | -20 to 40° C, relative humidity 85% or less (at 35°C) with no condensation | -20 to 40° C, relative humidity 85% or less (at 35°C) with no condensation |
| Power source | 2200mAh USB Rechargeable lithium battery | 2200mAh USB Rechargeable lithium battery |
| Battery life | 12 hours or longer | 12 hours or longer |
| Dimensions | 210x80x35mm | 210x80x35mm |
| Weight | 300g including batteries | 300g including batteries |
