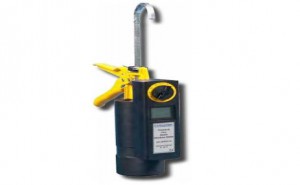

TECHNICAL | MC-600SD |

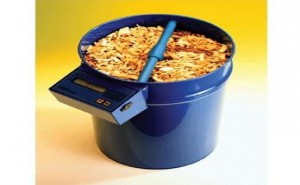

MEASURING RANGE MC-600SD-A SAWDUST,WOOD SHAVINGS | 8-50 H2O |
MEASURING RANGE MC-600SD-A HAY, STRAW | 10-30% H2O Relative Moisture Content |
SAMPLE VOLUME | 120 cm3 |
AUTOMATIC SWITCH OFF | Yes |
LOW BATTERY WARNING | Yes |
OPERATING TEMPERATURE | 0 C/+50 C |
DISPLAY | LCD digital |
RESOLUTION | 0,1% |
ACCURACY | 8-15 %MC = +/- 1% Moisture Content 16-28 % MC = +/- 2% Moisture Content |
MEASURING METHOD | Resistance |
POWER SUPPLY | 9V alkaline battery |
TRANSPORT CASE | Yes |
DIMENSIONS (h x w x d) | 300 x 215 x 65 mm |
WEIGHT (INCL: BATTERY) | 1 kg |
WARRANTY | 1 year |

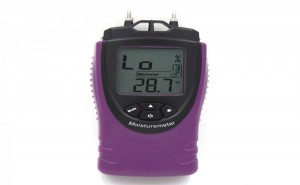

Product Description:
Specification:
Parameters: %material moisture contents . Temperature º C. º F
Range: 0.0%-95.7% , -10º C - 50º C
Accuracy: +/-2%. +/-1º C
Resolustion: 0.1%. 0.1º C . 0.1º F
Digital Display: 3 digits
Measurement Selection:
Material 1 : 9.0-54.8% (Hard wood such as Beech ,Spruce , Larch.Birch , Cherry , Walnut)
Material 2 : 7.3-47.9% (Soft wood such as Oak , Pine , Maple, Ash-tree Douglas Fir, Meranti)
Material 3: 1.0-22.1% (Cement or Concrete plane , Plaster produce )
Material 4 : 0.0-11% (Anhydrite plane)
Material 5: 0.7-8.5% (Cemnent mortar)
Material 6 : 0.5-9.8% (Lime mortar)
Material 7 : 0.0-16.4% (Bricks)
Auto off : 10 minutes without operation
Operating Temperature: -10-60º C (-4-140º F)
power supply: 1.5V*3 AAA Battery
Size: 121x55x28mm
weight : 105g
Portable package
Technique parameter:

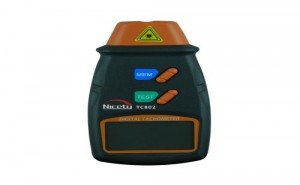

Mini Digital Tachometer Laser type TC802
Advantage:
* 5-digit large LCD display
* Memory for Max / Min / Last value
* Compact design, pocket size
* Auto-ranges
Brief Specifications:
Range: 2. 5~99, 999 rpm
Resolution: 0. 1 rpm (range 2. 5 ~ 999. 9 rpm)
1. 0 rpm (range over 1000 rpm)
Accuracy: ±(0. 05% +1digit)
Sampling: 0. 8 Seconds (over 60 rpm)
Measuring Distance: 50 ~ 500 mm
Power supply: 9V ( 6F22) x 1 (Included)
Packing: Gift box with Nylon bag inside.

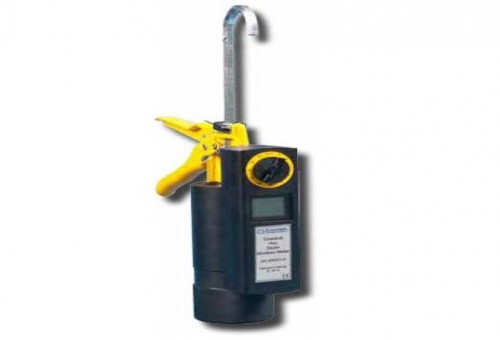

TECHNICAL | MC-600SD |
MEASURING RANGE MC-600SD-A SAWDUST,WOOD SHAVINGS | 8-50 H2O |
MEASURING RANGE MC-600SD-A HAY, STRAW | 10-30% H2O Relative Moisture Content |
SAMPLE VOLUME | 120 cm3 |
AUTOMATIC SWITCH OFF | Yes |
LOW BATTERY WARNING | Yes |
OPERATING TEMPERATURE | 0 C/+50 C |
DISPLAY | LCD digital |
RESOLUTION | 0,1% |
ACCURACY | 8-15 %MC = +/- 1% Moisture Content 16-28 % MC = +/- 2% Moisture Content |
MEASURING METHOD | Resistance |
POWER SUPPLY | 9V alkaline battery |
TRANSPORT CASE | Yes |
DIMENSIONS (h x w x d) | 300 x 215 x 65 mm |
WEIGHT (INCL: BATTERY) | 1 kg |
WARRANTY | 1 year |
TECHNICAL
