Details:

 Sensor: 3-Axis Piezoelectric Accelerometer

Measuring Range : Acceleration: 0.1~400 m/s2   0.3~1312 ft/s2       0.0~40 g   Equivalent Peak

Velocity: 0.01~400 mm/s   0.004~16.0 inch/s   True RMS

Displacement: 0.001~4.0 mm   0.04~160.0 mil   Equivalent Peak-peak

Frequency Range:  Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz

Velocity: 10 Hz ~ 1k Hz

Displacement: 10 Hz ~ 1k Hz

Accuracy:  5% of Reading + 2 digits

Metric / Imperial Conversion

  Analogue Output :  AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)

  Max. Value Hold

  Power Off:  Manual Power Off or Auto Power Off

  Battery Indicator: Low Battery Indicator

  Data Output: USB, RS-232, Bluetooth

  Operating Conditions:  Temperature: 0~50 °C; Humidity: <90 %RH

  Power Supply: 2 x 1.5V AA size (UM-3) Battery

  Dimensions: 130 x 76 x 32 mm

  Weight: 340 g (Not Including Batteries)

Standard Accessories:

 1. Main Unit

 2. Magnetic Suction Seat

 3. 3-Axis Piezoelectric Accelerometer

 4. Probe (Cone)

 5. Probe (Spherical)

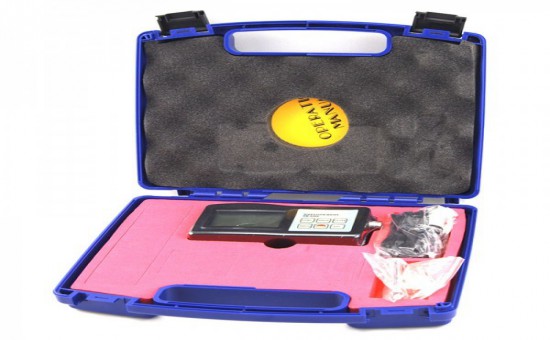

 6. Carrying Case

 7. Manual Book

Optional Accessories:

 1. Headset

 2. USB, RS-232 data cable with software

 3. Bluetooth data out put with software

Features :

Individual high quality accelerometer for accurate and repeatable measurements

Bearing condition monitoring function

Large and Clear LCD display

Light weight and easy to use

Piezoelectric accelerometer and magnetic base

5 Parameters: Velocity, Acceleration, Displacement, Speed (RPM) and Frequency

Wide frequency range (10 Hz ~ 10 kHz) in acceleration mode

Automatic power off

Maximum Hold

Low Battery Indicator

Specifications :

LCD Display: 4 digits, 18mm

Transducer: Piezoelectric accelerometer

Parameters measured: Velocity, Acceleration, Displacement, Speed (RPM) and Frequency

Measuring range:

Velocity (RMS): 0.01 ~ 40.00 cm/s (0 ~ 16.00 inch/s)

Acceleration (Peak): 0.1 ~ 40.00 m/s2 (0.3 ~ 1312 ft/s2)

Displacement (Peak ~ Peak): 0.001 - 4.000 mm (0.04 ~ 160.0 mil)

Speed: 60 ~ 99,990 r/min (RPM) (Readings should be multiplied by 10 if the display show "10")

Frequency: 1 ~ 20 kHz

Frequency Range

Acceleration (Peak): 10 Hz ~ 1 kHz (in "1" mode) and 10 Hz ~ 10 kHz (in "10" mode) for bearing condition checking

Velocity (RMS): 10 Hz ~ 1 kHz

Displacement (Peak ~ Peak): 10 Hz ~ 1 kHz

Accuracy: ± 5% n + 2 digits

Metric / Imperial conversion

Output: AC Output 2.0V peak full scale (load resistance: above 10k)

Power Supply: 4 x 1.5 AAA size batteries (not included)

Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)

Operating Humidity: <90% R.H.

Item Dimension: 124 (L) x 62 (W) x 30 (D) mm (4.9 x 2.4 x 1.2 inch)

Item Weight: 120g (4.23 oz) (batteries excluded)

One Set Included

1 x Vibration Meter

1 x Powerful rare earth magnet

1 x Accelerometer

1 x Stinger probe (Cone)

1 x Stinger probe (Ball)

1 x Instruction Manual

Standard Factory Package
