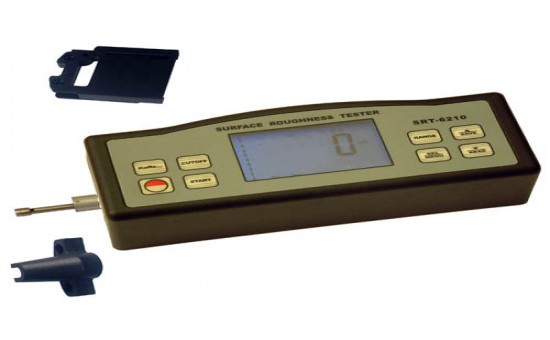

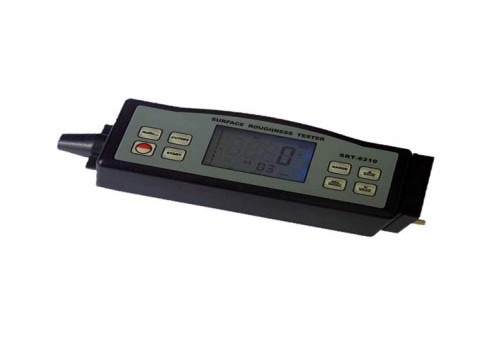

SRT-6210 – เครื่องทดสอบเครื่องวัดความขรุขระ

• จอแสดงผล: ตัวเลข 4 หลัก
• จอ LCD ขนาด 10 มม.
  ช่วงการวัด: Ra, Rq: 0.025-16.00um/1.000-629.9uinch
•                   Rz, Rt: 0.020-160.0um/0.078-6299uinch

==========================================

Brief Specifications:

Display: 4 digits, 10 mm LCD, with blue backlight

Parameters : Ra, Rz, Rq, Rt

Measuring Range :

Ra, Rq: 0.025-16.00um/1.000-629.9uinch

Rz, Rt: 0.020-160.0um/0.078-6299uinch

Accuracy: Not more than 10%

Fluctuation of display value: Not more than 6%

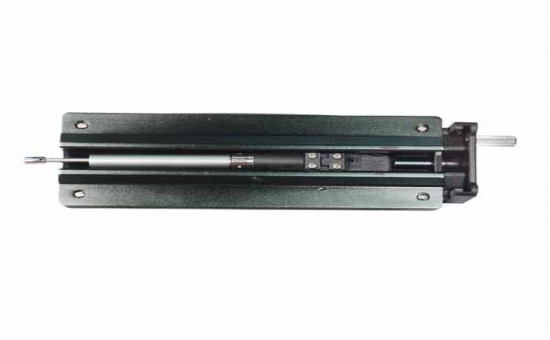

Sensor :

Radius of Probe Pin: 5um

Diameter of sensor head: 6mm

Material of Probe Pin: Diamond

Dynamo-measurement of Probe: 4mN(0.4gf)

Probe Angle: 90 deg.

Vertical Radius of Guiding Head: 48mm

Maximum driving stroke: 17.5mm/0.7inch

Cutoff length (l): 0.25mm / 0.8mm / 2.5mm

Driving speed:

     sampling length = 0.25mm Vt=0.135mm/s

     sampling length = 0.8mm Vt=0.5mm/s

     sampling length = 2.5mm Vt=1mm/s

     returning Vt=1mm/s

Battery: 4 x 1.5V AAA (UM-4) battery (not included)

Packing: Protective Carrying Case with contoured rubber compartments.

SRT-6200 - Roughness Tester Gauge Meter

• จอแสดงผล: 4 หลัก, จอ LCD ขนาด 10 มม.
• พารามิเตอร์: Ra, Rz
• ช่วงการวัด: Ra: 0.025-16.00um / 1.000-629.9inch;
                            Rz: 0.020-160.0um / 0.078-6299uinch
• ความถูกต้อง: ไม่เกิน 10%

=========================================

Brief Specifications:

Display: 4 digits, 10 mm LCD, with blue backlight

Parameters: Ra, Rz

Measuring Range: Ra: 0.025-16.00um/1.000-629.9uinch; Rz: 0.020-160.0um/0.078-6299uinch

Accuracy: Not more than 10%

Fluctuation of display value: Not more than 6%

Sensor : Radius of Probe Pin: 5um

              Diameter of sensor head: 6mm

Material of Probe Pin: Diamond

Dynamo-measurement of Probe: 16mN(1.6gf)

Probe Angle: 90 deg.

Vertical Radius of Guiding Head: 48mm

Maximum driving stroke: 17.5mm/0.7inch

Cutoff length (l): 0.25mm / 0.8mm / 2.5mm

Driving speed:

sampling length = 0.25mm Vt=0.135mm/s

sampling length = 0.8mm Vt=0.5mm/s

sampling length = 2.5mm Vt=1mm/s

returning Vt=1mm/s.

Battery: 4 x 1.5V AAA (UM-4) battery (not included)

Packing: Protective Carrying Case with contoured rubber compartments.
