Technique parameter:

Cable Tester ST-3468

* Test 5 types of cables

* Simple one button test

* Ergonomic portable handheld design

* Tests installed wiring or patch cables

* Remote unit stores in Main unit

* 600 ft test distance (RJ-45/RJ-11/BNC)

* Convenient battery access

* Built in battery access

* LEDs indicate connections and faults

* Beeper provides audible annunciation of test results

* Tests shielded (STP) or unshielded(UTP) LAN cables

* Test shields in 1394 and USB cables

1. Cables Tested: UTP and STP LAN cables Terminated in RJ-45 male connectors.(EIA/TIA 568)

    RJ-11 cables with male connectors, 2 to 6 conductors installed.

    1394 Cables with Type 1 plugs on both ends.

    USB cables with Type A flat plug on one end and type B square Plug on other end.

    BNC cables with male connectors.

2. Faults Indicated: No Connection, Shorts, Opens, crosses.

3. Low battery Indicator: LED lights to indicate low battery.

4. Case Dimensions: 7.25×4.0×1.0 inches (L×W×H).

5. Weight:202 grams,0445Ibs.(Without battery).

6. 6Battery: 1 standard 9-volt alkaline battery.

Specifications :

* Transmitting distance: ≤100m

* Power supply: emitter (three 1.5V AAA batteries); receiver (one 9V 6F22 zinc-manganese battery)

* Dimensions: 65x28x130mm (emitter); 38x30x196mm (receiver)

*    Weight: approx. 220g (with battery); packing weight: approx. 380g (with accessories)

Parts and accessories:

1PC  RJ11 line,

1PC  RJ45 line,

1PC  Alligator clip adapter line

1PC  Earphone

Portable bag; user manual, 3 AAA batteries, 1.9V battery,

Specifications:

Max working current:

Emitter: less than or equal to 10mA

Receiver: less than or equal to 30mA

Signal transmission format: Multi-frequency impulse

Signal output electric status: 8Vp-p

Distance of signal transmission: more than or equal to 3Km

Volume Regulate Function: Yes

Earphone for noise environment: Yes

RJ45 to BNC Converter: Yes

Sensitivity: induction distance less than 20mm, strong anti-jamming ability

Storage Temperature: -20 ~ 50°C

Operation Temperature: -10 ~ 40°C

Power Supply : DC 9V Battery

Battery life time: >50hrs continuous use

Size & Weight:

Emitter: 126 x 49 x 34mm ; 0.060kg

Receiver: 175 x 42 x 27mm ; 0.072kg

Whole Set: 270 x 165 x 45mm ; 0.420kg

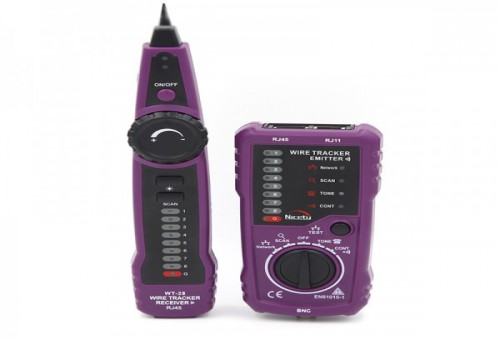

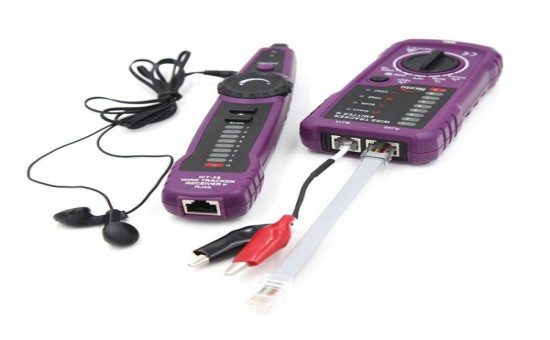

Set includes:

1 x Emitter

1 x Receiver

1 x RJ45 Network Cable

1 x RJ45 to BNC Converter

1 x Earphone

1 x Toolkit Bag

2 x 9V Battery

Instruction Manual

Colored Packaging Box

Warranty: 2 years warranty

• รับประกันสินค้า 1-2 ปี

Specifications:

Cable Tested : STP/UTP twin twisted cable,coaxial cable,telephone line

Cable Detected : 5E, 6E, telephone wire, coaxial cable, USB cable and other metal wires

Tester Port :

* RJ45 master port (M), LOOPBACK RJ45 port (L)

* Hunting RJ45 port (With RJ45)

* Remote identifier : RJ45 port (R) The extra BNC and RJ11 converters

Length Measurement of Twin Twisted Cable :

* Scope : 1~350 M (3~200 ft)

* Calibration accuracy : 3% (±0.5M or ±1.5ft) (calibrating cable >5M)

* Shipment accuracy : 5% (±0.5M or ±1.5ft) (AMP,AT&T class 5 cable)

Length Calibration : USer can set calibration factor by himself with a  given length cable. The length of calibrating cable is more than 5M.

Display : Special 4 x 16 character big screen LCD lattice

Power:Main Unit: 1 x 9V battery

      Receiver: 1 x 9V battery

Dimension:Main Unit: 185 x 105 x 50mm

          Receiver:218 x 46 x 29mm

Set Includes

1 x Audio Cable Length Tester

1 x Receiver

1 x Remote Identifier

1 x Earphone

2 x 9V Battery

1 x RJ11-to-Alligator Clip

1 x RJ45 Cable

1 x RJ11 Cable

1 x RJ45-to-BNC Converter

1 x carrying Bag

1 x Instruction Manual

Specifications:

Display: 4 x 16 character big screen LCD

Type of cable tested:STP/UTP twin twisted cable，Coaxial cable，Telephone line

Type of cable detected：5E，6E，telephone wire，coaxial cable，USB cable and other metal wires

Tester Port

  * Tester RJ45 mater port (M), tester LOOPBACK RJ45 port (L),hunting RJ45 port (with RJ45);

  * The Extra RJ45-to-BNC and RJ11-to-alligator converters are used to measure and check the continuity of coaxial cable and telephone line.

Length measurement of Twin Twisted Cable:

  * Scope : 1~350M (3~200ft)

  * Calibration accuracy : 3% (+/-0.5M or +/-1.5ft)(calibrating cable >5M)

  * Shipment accuracy : 5% (+/-0.5M or +/-1.5ft).(AMP, AT&T Class 5 cable)

  * Display : M or ft

Length Calibration : user can set calibration factor by himself with a given length cable. The length of calibrating cable more than 5M

Wire Sequence and Locating Cable Error:

  * Checks errors such as open circuit, short circuit, reverse connection, croos-over or croos-talk interference.

Locating Cable: 8 remote identifier test jacks (ID1 > ID8) (8 far-end test jacks are included on set)

Automatic time-delay shut Off time : the tester does not operate for 30 minutes.

Ambient temperature: -10°C ~ +60°C

Overall Dimension

  * Main tester: 185 x 105 x 50mm

  * Receiver: 218 x 46 x 29mm

  * Remote identifier : 84 x 34 x 27mm

Power: Two (2) 9V batteries (included)

Set includes:

1 x Main unit tester

1 x Receiver

8 x far-end passive test jacks (ID no.ID1-ID8)

1 x Earphone

1 x RJ45 Cable

1 x RJ11 Cable

2 x 9V Batteries

1 x RJ45-to-BNC converter

1 x RJ11-to-Alligator converter

1 x English Instruction manual
